Akino · 2027.xxxxS · 2019.xxxx

Arthroscopes with sheaths — 4 mm / 2.7 mm / 1.9 mm

HD arthroscope family from 1.9 mm to 4 mm (Art. 2019.xxxx for 1.9 mm; Art. 2027.xxxxS for 2.7 mm and 4 mm) with matching sheaths, two-way rotating stopcock cannulae, and blunt obturators for knee, shoulder, and small-joint arthroscopy.

Patented high-speed rod-lens optics in nitrogen-filled, fully autoclavable housings
Colour-coded sheath systems with blunt obturator and two-way irrigation stopcock
0°, 30°, and 70° direction-of-view options for knee, shoulder, and small-joint access

1.9 mm2.7 mm4.0 mm

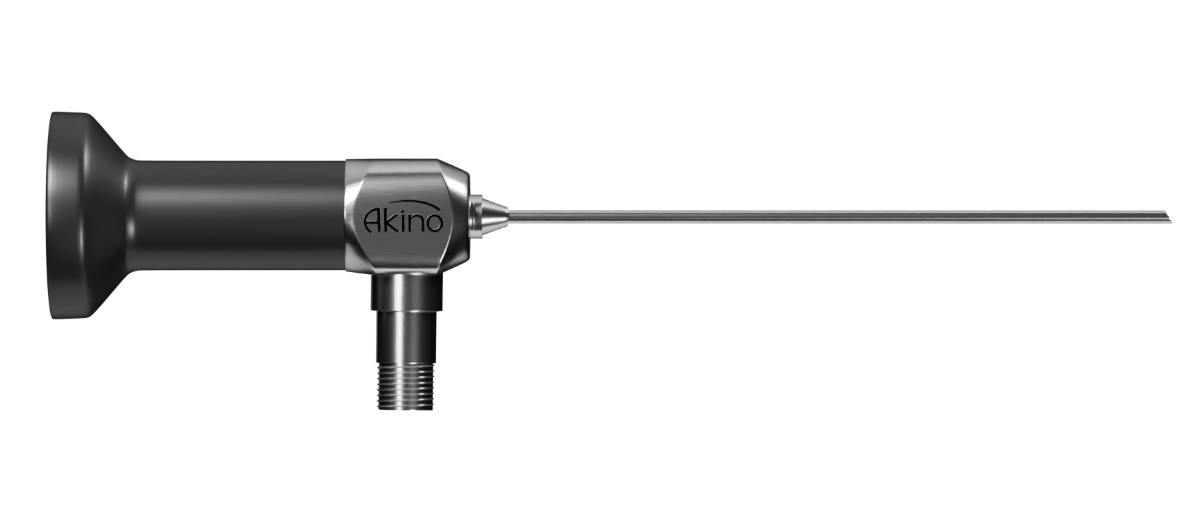

Arthroscopes with sheaths — 4 mm / 2.7 mm / 1.9 mm — primary diagram

Key specifications

Optical grade: HD rod-lens
Direction of view: 0° / 30° / 70°
Sterilization: Fully autoclavable
Distal protection: Sapphire tip

Full specification

Outer diameter options: 1.9 mm · 2.7 mm · 4.0 mm
Working length (typical): 138–185 mm (model dependent)
Optical system: Patented high-speed rod-lens; multicoated
Housing: Laser-welded stainless; nitrogen-filled barrel
Irrigation: Two-way rotating stopcock cannula (sheath kits)
Sheath coding: Colour-coded by diameter (Red 4 mm · Blue 2.7 mm)
Included with sheath kit: Blunt obturator · irrigation stopcock
Clinical use: Knee · shoulder · small-joint arthroscopy
